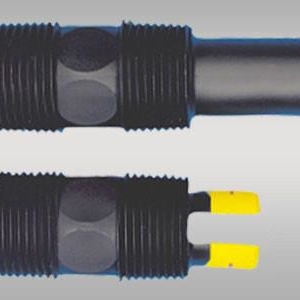

FLOWLINE LU10接觸式超聲波液位開關

所屬分類：美國FLOWLINE
瀏覽次數：
時間：2018-4-7 17:46:10

在線咨詢

021-6789 5686

產品詳情

FLOWLINE LU10 超聲波液位開關的壓電晶體是叉形探頭，這個叉形探頭的中間被空氣隔開。振動頻率為1.5MHz的晶體能夠把聲音信號傳到空氣間隙當中，當探頭浸入液體時，晶體與聲波偶合，超聲波液位計開關FET就會改變狀態。該產品可用于絕大部分液體的測量，包括具有輕度結層的液體、二甲苯、汽油、柴油等具有一定的危險性的液體

FLOWLINE LU10 超聲波液位開關產品特點：
● 本安防爆型，可以測量各種液體
● 材料和長度可選，PP/PFA 材料耐酸堿腐蝕。
● IP68探頭和纜線可以在液面下作業
● 繼電器輸出并且可與PLC或報警器連接

LU10 超聲波液位開關的參數如下：

精度：水中1mm
重復性：水中0 . 5mm
頻率：1.5MHz
供電：12-36VDC
耗電：未浸入液體狀態: 5mA
浸入液體狀態: 19mA
繼電器：1A(250VAC
開關量輸出：NO 或者NC
耐溫：-40-60℃
耐壓： l0 bar (25℃)
探頭材料：PP/PFA Teflon
防護等級：IP68
安裝螺紋：3/4" NPT&BSP
電纜規格：長2 44 cm，口徑2 g aug e，
PP或者PFA絕緣外皮
防爆：本安防爆， EEX IA II C T6

Orientation: Universal

Accuracy: ± 1mm in water

Repeatibility: ± 0.5mm in water

Supply voltage: 12-36 VDC

Consumption: 25 mA maximum

Contact type: (1) SPST relay

Contact rating: GP: 60 VA, IS: 32 VDC @ 0.5A

Contact output: Selectable NO / NC

Process temp.: F: -40° to 176°, C: -40° to 80°

Pressure: 150 psi (10 bar) @ 25o C, derated @ 1.667 psi (0.113 bar) per oC above 25o C

Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65)

Sensor material: -1XX5: PP, -2XX5: PFA

Cable jack. mat.: -1XX5: PP, -2XX5: PFA

Cable type: 4-conductor, shielded, #22 AWG

Cable length: 10’ (3m)

Process mount: 3/4” NPT (3/4”” G / Rp)

Mount. gasket: Viton^®

P/N	DESCRIPTION
LU10-1305	PP, short, 3/4″ NPT
LU10-1325	PP, short, 3/4″ G
LU10-1405	PP, long, 3/4″ NPT
LU10-1425	PP, long, 3/4″ G
LU10-2305	PFA, short, 3/4″ NPT
LU10-2325	PFA, short, 3/4″ G
LU10-2405	PFA, long, 3/4″ NPT
LU10-2425	PFA, long, 3/4″ G

Classification: Intrinsically safe

Certificate: CSA, LR 79326

Compliance: CE

Approvals: Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III

Parameters: Vmax = 32V, Imax = 300 mA, Pmax = 1.3W, Ci = 0 μF, Li = 0 μH
